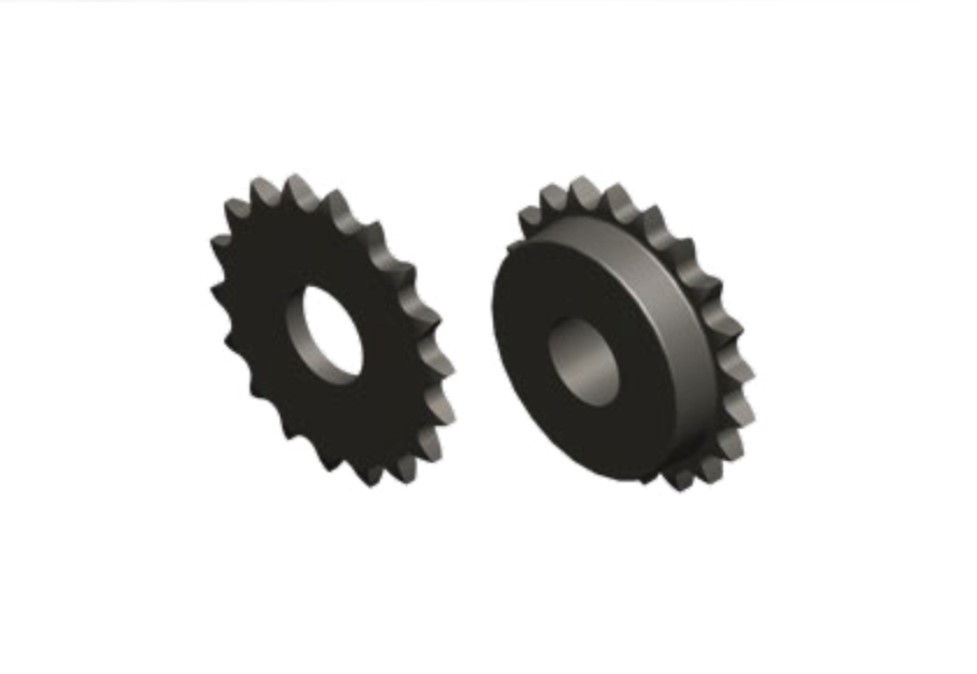

• Double Pitch Sprocket
1 - 25 of 59 | Results Per Page | View | Unit of Measure
1 2 3
Request Information Compare Items Search by Specification
Clear Filter

Series

  • Conveyor or Drive Series - Standard Roller Double Pitch Sprocket
  • Conveyor Series - Large Roller Double Pitch Sprocket

Type

A Single B Single

Number of Teeth

Plain Bore (in)

LTB (in)

1 1/4 1 3/4

Item #

Series

Type

Number of Teeth

Outside Diameter

Plain Bore

LTB

N/A Conveyor or Drive Series - Standard Roller Double Pitch Sprocket N/A A Single N/A 24 N/A 6.150 in N/A 23/32 in N/A
N/A Conveyor or Drive Series - Standard Roller Double Pitch Sprocket N/A A Single N/A 25 N/A 6.390 in N/A 23/32 in N/A
N/A Conveyor or Drive Series - Standard Roller Double Pitch Sprocket N/A A Single N/A 26 N/A 6.630 in N/A 23/32 in N/A
N/A Conveyor or Drive Series - Standard Roller Double Pitch Sprocket N/A A Single N/A 28 N/A 7.110 in N/A 23/32 in N/A
N/A Conveyor or Drive Series - Standard Roller Double Pitch Sprocket N/A A Single N/A 30 N/A 7.590 in N/A 23/32 in N/A
N/A Conveyor or Drive Series - Standard Roller Double Pitch Sprocket N/A B Single N/A 11 N/A 3.000 in N/A 3/4 in N/A 1 1/4 in
N/A Conveyor or Drive Series - Standard Roller Double Pitch Sprocket N/A B Single N/A 12 N/A 3.250 in N/A 3/4 in N/A 1 1/4 in
N/A Conveyor or Drive Series - Standard Roller Double Pitch Sprocket N/A B Single N/A 13 N/A 3.490 in N/A 3/4 in N/A 1 1/4 in
N/A Conveyor or Drive Series - Standard Roller Double Pitch Sprocket N/A B Single N/A 14 N/A 3.740 in N/A 3/4 in N/A 1 1/4 in
N/A Conveyor or Drive Series - Standard Roller Double Pitch Sprocket N/A B Single N/A 15 N/A 3.960 in N/A 3/4 in N/A 1 1/4 in
N/A Conveyor or Drive Series - Standard Roller Double Pitch Sprocket N/A B Single N/A 16 N/A 4.220 in N/A 3/4 in N/A 1 1/4 in
N/A Conveyor or Drive Series - Standard Roller Double Pitch Sprocket N/A B Single N/A 17 N/A 4.460 in N/A 3/4 in N/A 1 1/4 in
N/A Conveyor or Drive Series - Standard Roller Double Pitch Sprocket N/A B Single N/A 18 N/A 4.700 in N/A 3/4 in N/A 1 1/4 in
N/A Conveyor or Drive Series - Standard Roller Double Pitch Sprocket N/A B Single N/A 19 N/A 4.940 in N/A 3/4 in N/A 1 1/4 in
N/A Conveyor or Drive Series - Standard Roller Double Pitch Sprocket N/A B Single N/A 20 N/A 5.190 in N/A 3/4 in N/A 1 1/4 in
N/A Conveyor or Drive Series - Standard Roller Double Pitch Sprocket N/A B Single N/A 21 N/A 5.430 in N/A 3/4 in N/A 1 1/4 in
N/A Conveyor or Drive Series - Standard Roller Double Pitch Sprocket N/A B Single N/A 22 N/A 5.670 in N/A 3/4 in N/A 1 1/4 in
N/A Conveyor or Drive Series - Standard Roller Double Pitch Sprocket N/A B Single N/A 23 N/A 5.910 in N/A 3/4 in N/A 1 1/4 in
N/A Conveyor or Drive Series - Standard Roller Double Pitch Sprocket N/A B Single N/A 24 N/A 6.150 in N/A 3/4 in N/A 1 1/4 in
N/A Conveyor or Drive Series - Standard Roller Double Pitch Sprocket N/A B Single N/A 25 N/A 6.390 in N/A 3/4 in N/A 1 1/4 in
N/A Conveyor or Drive Series - Standard Roller Double Pitch Sprocket N/A B Single N/A 26 N/A 6.630 in N/A 3/4 in N/A 1 1/4 in
N/A Conveyor or Drive Series - Standard Roller Double Pitch Sprocket N/A B Single N/A 28 N/A 7.110 in N/A 3/4 in N/A 1 1/4 in
N/A Conveyor or Drive Series - Standard Roller Double Pitch Sprocket N/A B Single N/A 30 N/A 7.590 in N/A 3/4 in N/A 1 1/4 in
N/A Conveyor Series - Large Roller Double Pitch Sprocket N/A A Single N/A 12 N/A 6.500 in N/A 23/32 in N/A
N/A Conveyor Series - Large Roller Double Pitch Sprocket N/A A Single N/A 13 N/A 6.990 in N/A 23/32 in N/A
1 - 25 of 59 | Results Per Page | View | Unit of Measure
1 2 3
