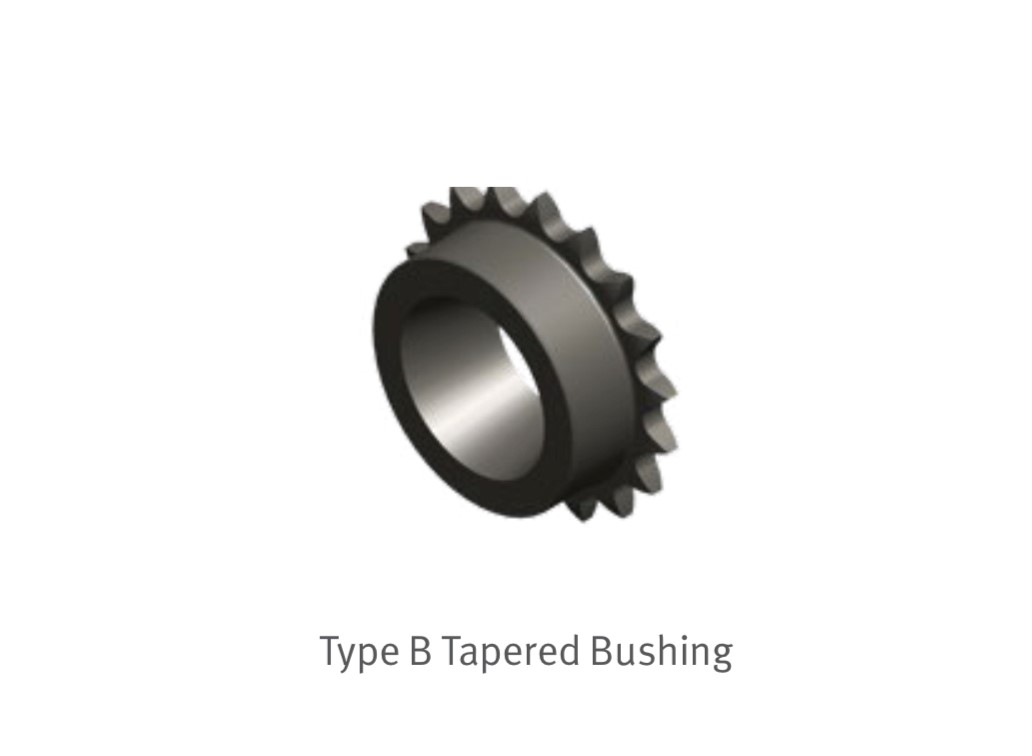

• Tapered Bushing Sprocket

1 - 25 of 42 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items Search by Specification
Clear Filter

Type

A Double B Single C Double

Number of Teeth

Bushing

Outside Diameter (in)

Max. Bore (in)

Item #

Type

Number of Teeth

Bushing

Outside Diameter

Max. Bore

LTB

SPROCKET 50BTL12H N/A B Single N/A 12 N/A 1008 N/A 2.708 in N/A 1 in N/A 7/8 in
SPROCKET 50BTL13H N/A B Single N/A 13 N/A 1008 N/A 2.911 in N/A 1 in N/A 7/8 in
SPROCKET 50BTL14H N/A B Single N/A 14 N/A 1008 N/A 3.113 in N/A 1 in N/A 7/8 in
SPROCKET 50BTL15H N/A B Single N/A 15 N/A 1210 N/A 3.315 in N/A 1 1/4 in N/A 1 in
SPROCKET 50BTL16H N/A B Single N/A 16 N/A 1610 N/A 3.517 in N/A 1 5/8 in N/A 1 in
SPROCKET 50BTL17H N/A B Single N/A 17 N/A 1610 N/A 3.719 in N/A 1 5/8 in N/A 1 in
SPROCKET 50BTL18H N/A B Single N/A 18 N/A 1610 N/A 3.920 in N/A 1 5/8 in N/A 1 in
SPROCKET 50BTL19H N/A B Single N/A 19 N/A 1610 N/A 4.120 in N/A 1 5/8 in N/A 1 in
SPROCKET 50BTL20H N/A B Single N/A 20 N/A 1610 N/A 4.321 in N/A 1 5/8 in N/A 1 in
SPROCKET 50BTL21H N/A B Single N/A 21 N/A 1610 N/A 4.522 in N/A 1 5/8 in N/A 1 in
SPROCKET 50BTL22H N/A B Single N/A 22 N/A 1610 N/A 4.722 in N/A 1 5/8 in N/A 1 in
SPROCKET 50BTL23H N/A B Single N/A 23 N/A 2012 N/A 4.922 in N/A 2 in N/A 1 in
SPROCKET 50BTL24H N/A B Single N/A 24 N/A 2012 N/A 5.122 in N/A 2 in N/A 1 1/4 in
SPROCKET 50BTL25H N/A B Single N/A 25 N/A 2012 N/A 5.322 in N/A 2 in N/A 1 1/4 in
SPROCKET 50BTL26H N/A B Single N/A 26 N/A 2012 N/A 5.522 in N/A 2 in N/A 1 1/4 in
SPROCKET 50BTL27H N/A B Single N/A 27 N/A 2012 N/A 5.723 in N/A 2 in N/A 1 1/4 in
SPROCKET 50BTL28H N/A B Single N/A 28 N/A 2012 N/A 5.922 in N/A 2 in N/A 1 1/4 in
SPROCKET 50BTL30H N/A B Single N/A 30 N/A 2012 N/A 6.321 in N/A 2 in N/A 1 1/4 in
SPROCKET 50BTL32 N/A B Single N/A 32 N/A 2012 N/A 6.721 in N/A 2 in N/A 1 1/4 in
SPROCKET 50BTL35 N/A B Single N/A 35 N/A 2012 N/A 7.319 in N/A 2 in N/A 1 1/4 in
SPROCKET 50BTL36H N/A B Single N/A 36 N/A 2012 N/A 7.519 in N/A 2 in N/A 1 1/4 in
SPROCKET 50BTL40 N/A B Single N/A 40 N/A 2012 N/A 8.316 in N/A 2 in N/A 1 1/4 in
SPROCKET 50BTL42 N/A B Single N/A 42 N/A 2012 N/A 8.715 in N/A 2 in N/A 1 1/4 in
SPROCKET 50BTL45 N/A B Single N/A 45 N/A 2012 N/A 9.313 in N/A 2 in N/A 1 1/4 in
SPROCKET 50BTL48 N/A B Single N/A 48 N/A 2012 N/A 9.911 in N/A 2 in N/A 1 1/4 in
1 - 25 of 42 | Results Per Page | View | Unit of Measure
1 2
