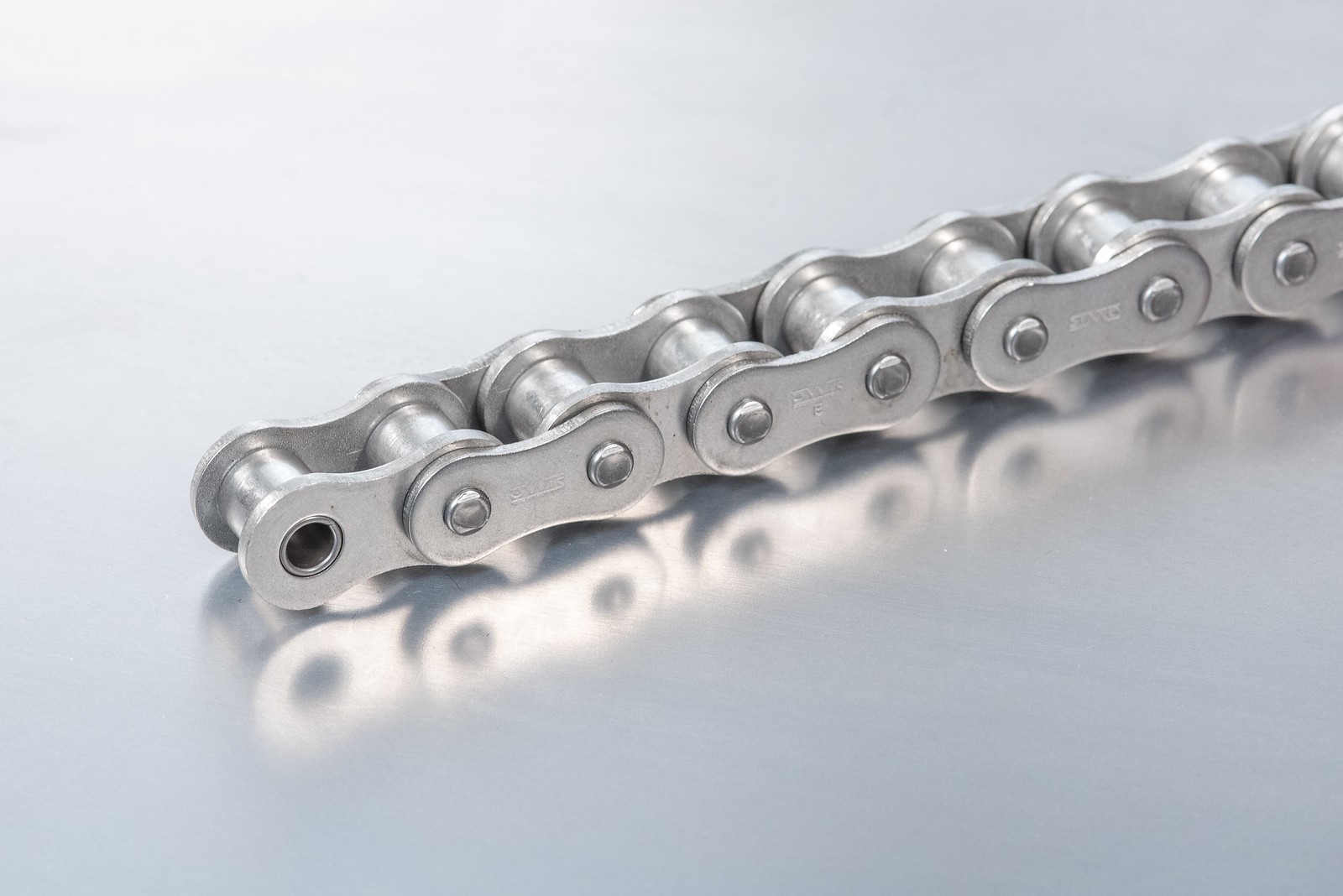

Stainless steel roller chains – Dimensions according to ISO 606
Chain Construction |
N/A Riveted |
Model |
N/A 50AS |
Material |
N/A Stainless Steel |
Chain Size |
N/A 50 |
Number of Strands |
N/A 1 |
Pin Diameter |
N/A 5.09 mm |
FU - Min. Tensile strength |
N/A 15.20 kN |
Description 1 |
N/A 50AS RIV 100FT JWIS |
Description 2 |
N/A CHAIN |
Weight |
N/A 32.10 kg |
Length |
N/A 30.48 m |
Pitch |
N/A 15.88 mm |
Roller Width |
N/A 9.4 mm |
h2 max. - Height Inner Plate |
N/A 15.09 mm |
Ti - Plate Thickness |
N/A 2.00 mm |
Roller Diameter |
N/A 10.16 mm |
b1 min. - Width Between Inner Plates |
N/A 9.4 mm |
d2 max. - Pin Diameter |
N/A 5.09 mm |
a1 max. |
N/A 21.80 mm |
a max. |
N/A 25.90 mm |
