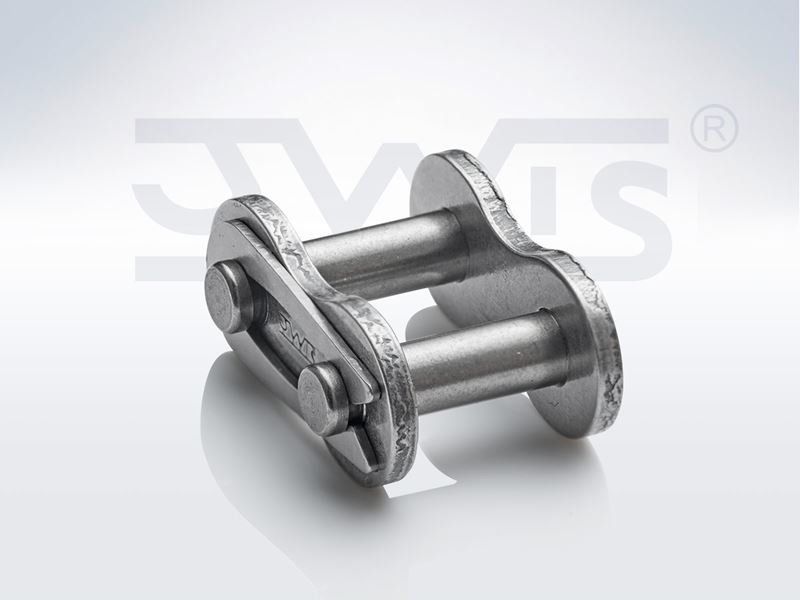

1/4" pitch British Standard single strand spring clip conn link JWIS brand

SEO

Brand

 N/A JWIS

Specifications

UPC Code

 N/A 847648060214

Iwis Reference

 N/A G 42

Type

 N/A British Standard, Simplex

Chain Construction

 N/A Connecting Link

Model

 N/A 04

Chain Size

 N/A 04

Number of Strands

 N/A 1

Fb - Ave. Tensile Strength

 N/A 3.20 kN

FU - Min. Tensile strength

 N/A 3.00 kN

f - Bearing Area

 N/A 0.07 cm²

Description 1

 N/A 04 METRIC SCCL JWIS

Description 2

 N/A CHAIN PARTS

Norm

 N/A ISO 606

q - Weight Per Meter

 N/A 0.12 kg/m

Weight

 N/A 0.005 kg

Weight Pounds Per Foot

 N/A 0.08 lb/ft

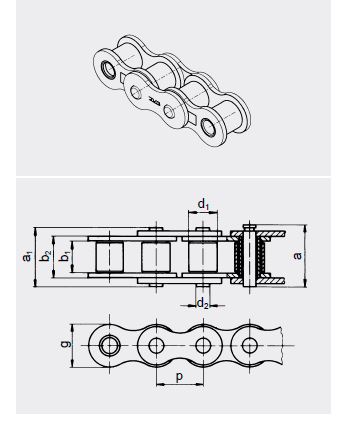

Dimensions

p - Pitch

 N/A 6.00 mm

Pitch p (")

 N/A 6 x 2.8 mm

g max. - Height Inner Plate

 N/A 5.00 mm

b2 max. - Total Width Inner Link

 N/A 4.10 mm

d2 max. - Pin Diameter

 N/A 1.85 mm
a1 max.1 N/A 6.70 mm
a max.2 N/A 7.60 mm
  • 1 Varying dimensions for cranked links
  • 2 Varying dimensions for cranked links
