Tensioning Element
Tensioners

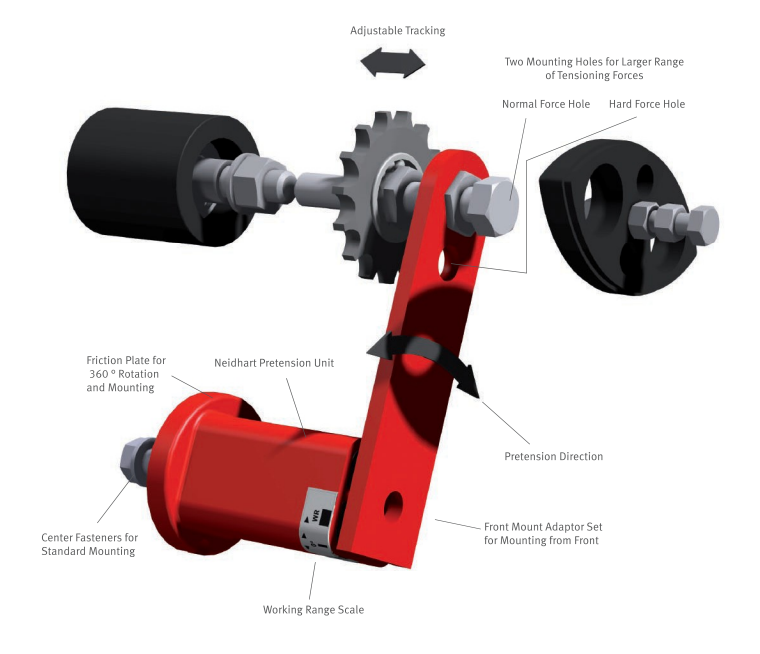

The ELITE Automatic Chain Tensioners compensate for the chain elongation in the machines and conveyor systems. The Chain Tensioners are made from high quality materials, and various sizes are available for different applications.
Item # |
Tensioning Element Type |
Tightening Torque - Back Mounted |
Tightening Torque - Front Mounted |
A - Diameter |
C |
Weight |
|---|---|---|---|---|---|---|
| TE 2 | Tensioning Element Type N/A TE 2 | Tightening Torque - Back Mounted N/A 9.00 lb·ft | Tightening Torque - Front Mounted N/A | A - Diameter N/A 1.38 in | C N/A 2.01 in | Weight N/A 0.55 lb |
| TE 3 | Tensioning Element Type N/A TE 3 | Tightening Torque - Back Mounted N/A 21.00 lb·ft | Tightening Torque - Front Mounted N/A 14.00 lb·ft | A - Diameter N/A 1.77 in | C N/A 2.52 in | Weight N/A 0.88 lb |
| TE 4 | Tensioning Element Type N/A TE 4 | Tightening Torque - Back Mounted N/A 41.00 lb·ft | Tightening Torque - Front Mounted N/A 34.00 lb·ft | A - Diameter N/A 2.28 in | C N/A 3.07 in | Weight N/A 1.54 lb |
| TE 5 | Tensioning Element Type N/A TE 5 | Tightening Torque - Back Mounted N/A 72.00 lb·ft | Tightening Torque - Front Mounted N/A 68.00 lb·ft | A - Diameter N/A 3.07 in | C N/A 4.21 in | Weight N/A 4.41 lb |
| TE 6 | Tensioning Element Type N/A TE 6 | Tightening Torque - Back Mounted N/A 180.00 lb·ft | Tightening Torque - Front Mounted N/A 118.00 lb·ft | A - Diameter N/A 3.74 in | C N/A 5.51 in | Weight N/A 8.82 lb |
| TE 7 | Tensioning Element Type N/A TE 7 | Tightening Torque - Back Mounted N/A 351.00 lb·ft | Tightening Torque - Front Mounted N/A 293.00 lb·ft | A - Diameter N/A 4.53 in | C N/A 7.87 in | Weight N/A 17.64 lb |
| TE 8 | Tensioning Element Type N/A TE 8 | Tightening Torque - Back Mounted N/A 606.00 lb·ft | Tightening Torque - Front Mounted N/A 572.00 lb·ft | A - Diameter N/A 5.12 in | C N/A 8.27 in | Weight N/A 22.05 lb |
