ELITE Accumulation Roller Chains

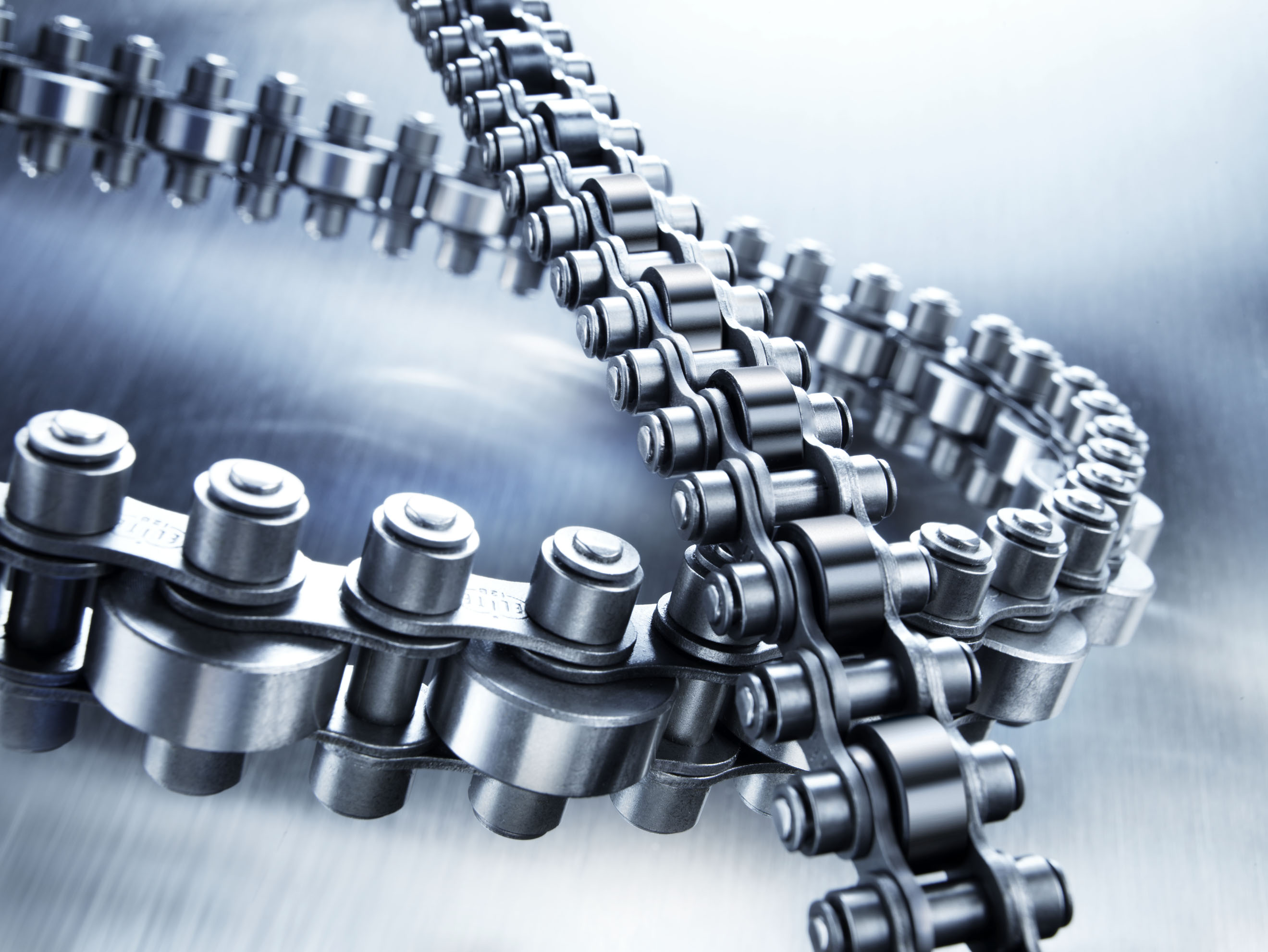

The ELITE Accumulation chains are used for conveying goods on lines that stop and start intermittently while the chain continues to run. The external rollers on one side of the chain mesh with the sprocket teeth to transmit drive power while on the other side, they support the chain in the guide profile.
Item # |
Model |
Chain Size |
Max. Load per Conveyer Roller |
Pitch |
Weight |
|---|---|---|---|---|---|
| ES1-1-27-K16 ACCUM CH 36M ELITE | Model N/A ES1-1-27-K16 | Chain Size N/A 27 | Max. Load per Conveyer Roller N/A 20 20 N | Pitch N/A 12.70 mm | Weight N/A 0.90 kg |
| ES1-1-27-K16 ACCUM CH 40FT ELITE | Model N/A ES1-1-27-K16 | Chain Size N/A 27 | Max. Load per Conveyer Roller N/A 20 20 N | Pitch N/A 12.70 mm | Weight N/A 0.90 kg |
| ES1-1-27-K16 ACCUM CH 5M ELITE | Model N/A ES1-1-27-K16 | Chain Size N/A 27 | Max. Load per Conveyer Roller N/A 20 20 N | Pitch N/A 12.70 mm | Weight N/A 0.90 kg |
| ES1-1-27-S16 ACC CH BLK OXIDE 40FT ELITE | Model N/A ES1-1-27-S16 | Chain Size N/A 27 | Max. Load per Conveyer Roller N/A 50 50 N | Pitch N/A 12.70 mm | Weight N/A 1.36 kg |
| ES1-1-27-S16 ACCUM CH 36M ELITE | Model N/A ES1-1-27-S16 | Chain Size N/A 27 | Max. Load per Conveyer Roller N/A 50 50 N | Pitch N/A 12.70 mm | Weight N/A 1.10 kg |
| ES1-1-27-S16 ACCUM CH 40FT ELITE | Model N/A ES1-1-27-S16 | Chain Size N/A 27 | Max. Load per Conveyer Roller N/A 50 50 N | Pitch N/A 12.70 mm | Weight N/A 13.38 kg |
| ES1-1-27 ACCUM CH CONN LINK ELITE | Model N/A ES1-1-27-K16,ES1-1-27-S16 | Chain Size N/A 27 | Max. Load per Conveyer Roller N/A | Pitch N/A 12.70 mm | Weight N/A 0.01 kg |
| ES2-1-40 ACCUM CH CONN LINK L=40 ELITE | Model N/A ES2-1-40-K28,ES2-1-40-S28 | Chain Size N/A 40 | Max. Load per Conveyer Roller N/A | Pitch N/A 19.05 mm | Weight N/A 0.08 kg |
| ES2-1-43-K26 ACCUM CH 5M ELITE | Model N/A ES2-1-43-K26 | Chain Size N/A 43 | Max. Load per Conveyer Roller N/A 90 90 N | Pitch N/A 19.05 mm | Weight N/A 2.00 kg |
| ES2-1-43-K28 ACCUM CH 5M ELITE | Model N/A ES2-1-43-K28 | Chain Size N/A 43 | Max. Load per Conveyer Roller N/A 90 90 N | Pitch N/A 19.05 mm | Weight N/A 2.18 kg |
| ES2-1-43-S26 ACCUM CH 5M ELITE | Model N/A ES2-1-43-S26 | Chain Size N/A 43 | Max. Load per Conveyer Roller N/A 140 140 N | Pitch N/A 19.05 mm | Weight N/A 3.19 kg |
| ES2-1-43-S28 ACCUM CH 5M ELITE | Model N/A ES2-1-43-S28 | Chain Size N/A 43 | Max. Load per Conveyer Roller N/A 140 140 N | Pitch N/A 19.05 mm | Weight N/A 3.24 kg |
| ES2-1-48-K24 ACCUM CH 5M ELITE | Model N/A ES2-1-48-K24 | Chain Size N/A 48 | Max. Load per Conveyer Roller N/A 90 90 N | Pitch N/A 19.05 mm | Weight N/A 11.48 kg |
| ES2-1-48-S24 ACCUM CH 5M ELITE | Model N/A ES2-1-48-S24 | Chain Size N/A 48 | Max. Load per Conveyer Roller N/A 140 140 N | Pitch N/A 19.05 mm | Weight N/A 3.29 kg |
| ES3-1-65-S38 ACCUM CH 5M ELITE | Model N/A ES3-1-65-S38 | Chain Size N/A 65 | Max. Load per Conveyer Roller N/A 280 280 N | Pitch N/A 25.40 mm | Weight N/A 6.39 kg |
| ES3-1-65-S38 ACCUM CH CONN LINK ELITE | Model N/A ES3-1-65-S38 | Chain Size N/A 65 | Max. Load per Conveyer Roller N/A 280 280 N | Pitch N/A 25.40 mm | Weight N/A 0.30 kg |
